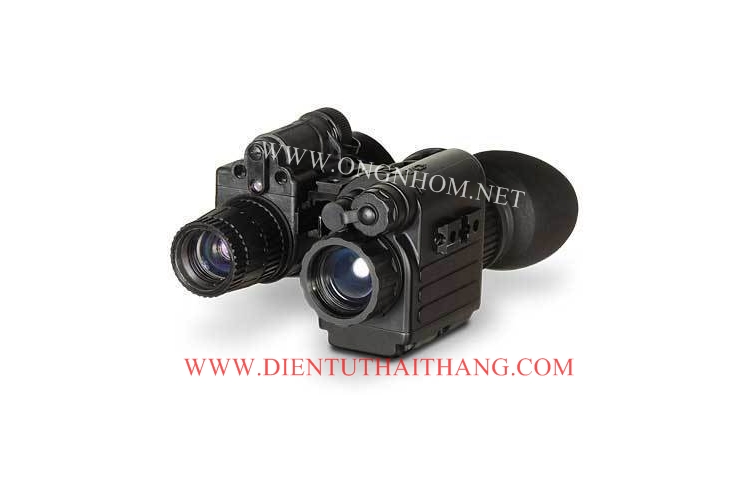

ỐNG NHÒM NHIÊT ATN FIITS14 W / UPS

Thermal Channel:

Magnification:

1X

Objective Focal Length:

16 mm

FOV:

11 x 8

Focus Range:

1m to infinity

Focus Adjustment:

Manual

Exit Pupil:

14mm

Eye Relief:

25mm

Detector Type:

Uncooled Microbolometer

Spectral Response:

7-14 µm

Pixels:

160 x 120

Pixel Size:

30 x 30 µm

Angular Resolution, mrad:

1,2

Thermal Sensitivity:

< 0,1C

Range to Detect a Human:

475 m

Output Format:

Analog PAL / NTSC

Display:

OLED matrix

Display:

Format SVGA, 852 x 600 pxl

Color:

Monochrome

Digital ZOOM:

Fixed 2x (optional 5x)

Brightness Adjustment:

Manual

Contrast Adjustment:

Automatic

Available User Interfaces:

From outside PC through USB interface

Power Supply:

2 x 3V, 123A type

Start-Up Time:

< 3 sec

Battery Life with One battery pack:

4 hrs

Battery Life with External Power Supply:

DC 6V, 500 mA

Operation Temperature:

from -20 C to +50 C

Waterproof:

Yes, up to 10m submersion

Dimensions:

118 x 78 x 54 mm

Weight (w/batteries):

0,34 kg

Night Vision Channel:

Magnification:

1X

Focus Range:

0.25 m to Infinity

Eye Relief:

25 mm

Exit Pupil:

14 mm

Dioptre Adjustment:

+- 4

Operation Temperature:

-40 To +50C

Storage Temperature:

-50 To +70C

Waterproof:

Yes, 20 m for 1 h

Power Supply:

one 3V, 123Atype

Battery Life:

25 hours (AA, 1.5 V); 50 hours (Lithium, 123a, 3v)

Dimensions:

125 X 49 X 69 mm

Weight (With Battery):

0.32 kg
