Đầu Lưu Hình Camera CCTV Siêu Nhỏ 2 Kênh Có Audio

Đầu lưu hình trên ô tô này có thể lưu hình cùng một lúc 2 camera, có cổng Audio In để  lưu cả âm thanh kèm theo (Nếu Camera có Mic), Đầu lưu sử dụng thẻ nhớ Micro SD dung lượng tối đa lên tới 32GB (Không kèm theo) rất tiện dụng để gắn trên ô tô hoặc sử dụng trong các tác vụ bí mật, kích thước cực kỳ nhỏ gọn chỉ 70x85x25mm (L x W x D). Có cổng AV Out truyền hình ảnh ra màn hình.

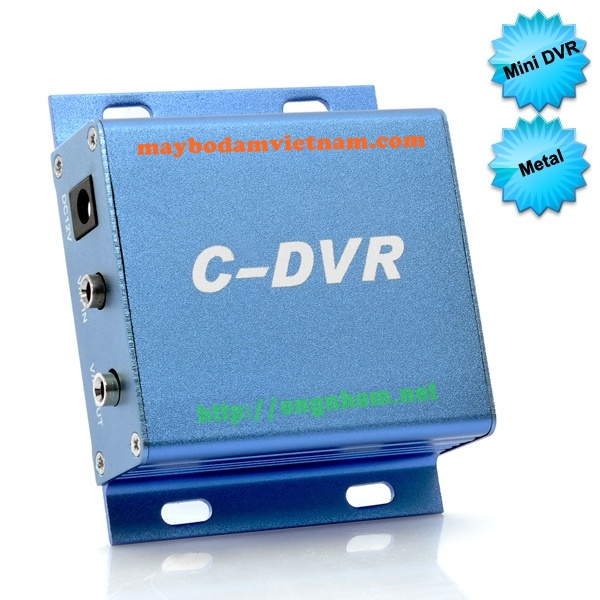

Hình ảnh đầu ghi hình KTS siêu nhỏ gọn :




































Mini Security DVR with MicroSD card recording, video IN and OUT, motion detection and constructed from high quality metal.

This mini DVR is the perfect device if you are looking for a inexpensive and fast way to install your security cameras to an easy to use and operate DVR system. Hook up a single camera to the mini DVR and record its feed straight away on a MicroSD Card. To view the footage you can either retrieve the data from the MicroSD card on a PC or hook up a monitor to the Video OUT connector. Constructed from high quality metal for protection as well as with screw holes for installation, just screw the DVR to your wall or a convenient flat space, connect the CCTV camera, and whatever is seen by the camera will be recorded to the MicroSD card inserted into the DVR.

Several recording modes are available such as motion detection recording, continuous recording and mixed recording. Compact but well built, this mini metal DVR won’t let you down. Forget about tons of wires, easily install and connect the DVR to your security camera! As an extra, we throw in 2 Free BNC to AV connectors for added compatibility with surveillance cameras!

Specification:



Features:

    * Small DVR

    * microSD Card Recording

    * Video IN an OUT

    * Metal Construction

    * Screw holes for easy installation to any flat surfacce

    * 2 Free BNC to AV Connectors





Specifications:

General:

    * Image compression: AVI

    * Resolution: VGA (640x480), QVGA(320x240)

    * Input: One Channel Video and One Channel Audio

    * Output: One Channel Video and One Channel Audio

    * Video Output Format: PAL/NTSC

    * Recording mode: Motion detected / Continuous recording/ Mixing recording

    * Timetable Adjustment

    * Menu setting: Set by wheel (SW) on monitor

    * Video Parameters: ARM + DSP Technology and Intelligent Algorithm

    * Browser Software: Windows Media Player

    * Power: DV 12V

    * Language: English, Chinese





Memory:

    * Micro SD Card Slot Supports up to 32GB





Dimensions:

    * Main product dimensions: 70x85x25mm (L x W x D)

    * Main product weight: 108g

    * Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.





Package Contents:

    * Mini DVR

    * CD-ROM with Driver

    * Power Adapter

    * A/V cable

    * User Manual

    * 2 x BNC Adapters
